BHD51 - WAROM
400.000VND 600.000VND

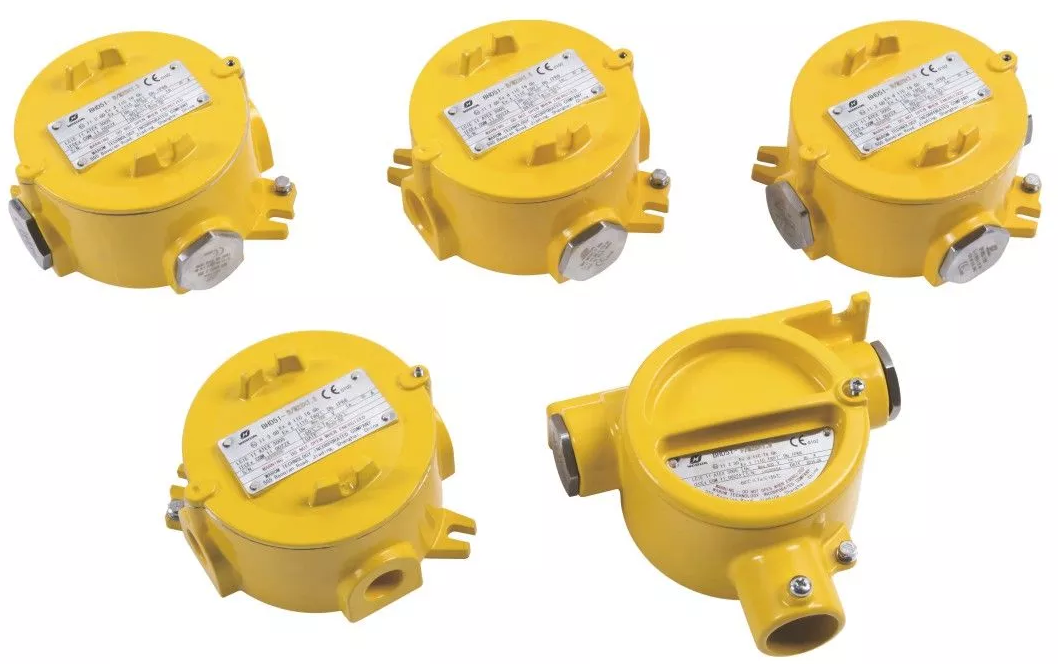

Hộp nối chống cháy nổ Warom
Free ship trong nội thành TPHCM
Description
Shipping policy
Material | Copper-free Aluminium Alloy or cast iron, powder coated surface |
Weight | 0.7kg~2.1kg |
Dimensions | 117mm×122×80mm |
Enclosure colour | Yellow (RAL1021) |
Exposed fastener | Stainless steel |
Rated voltage | Max. 500V AC |
Rated current | 20A |
Internal&external earthing | M4/M5 |
Cable gland(optional) | DQM-II(Ex d), DQM-III(Ex d) |
Global (IECEx) | IECEx CQM 11.0022X |
Gas and dust | Ex db IIC T6 Gb |
| Ex tb IIIC T80℃ Db IP66 |
Europe (ATEX) | LCIE 11 ATEX 3005 |
Gas and dust | II 2 G Ex db IIC T6 Gb |
| II 2 D Ex tb IIIC T80℃ Db IP66 |
Certificates | IECEx; ATEX; CU-TR |
Conformity to standards | EN; IEC |
Degree of protection | IP66 |
Ambient temperature | -60℃~+60℃ |
