RANGE 4000 - FEEL

DEMKO certified under directive 94/9/EC (ATEX) for Group II, Category 2, G and D. The enclosure has been certified to give a large
measure of flexibility based on Power Dissipation and is suitable for Zone 1, 2 (Gases) Zone 21 and 22 (Dusts).
Product complies with standards EN 50014, EN 50018 and EN 50281-1-1
CERTIFICATE NUMBER: DEMKO 01ATEX130862X
PROTECTION CONCEPT: EEx d IIB T6 T85OC
EEx d IIB T5 T100OC
EEx d IIB T4 T135OC
AMBIENT TEMPERATURE AND: -20OC to +50OC (T6) 30W
POWER DISSIPATION LIMIT: -20OC to +60OC (T5) 30W
-20OC to +40OC (T6) 40W
-20OC to +50OC (T5) 40W
-20OC to +40OC (T5) 50W
-20OC to +60OC (T4) 50W
INGRESS PROTECTION: IP66
MATERIALS STANDARD: Grey Cast Iron (EN 1561)
COVER SCREWS: Stainless SteelA4 80 captive
FINISH STANDARD: Hot Dipped Galvanised
SPECIAL: Zinc spray, Epoxy resin or Paint
(any colour)
WEIGHT: 11Kg (approx)

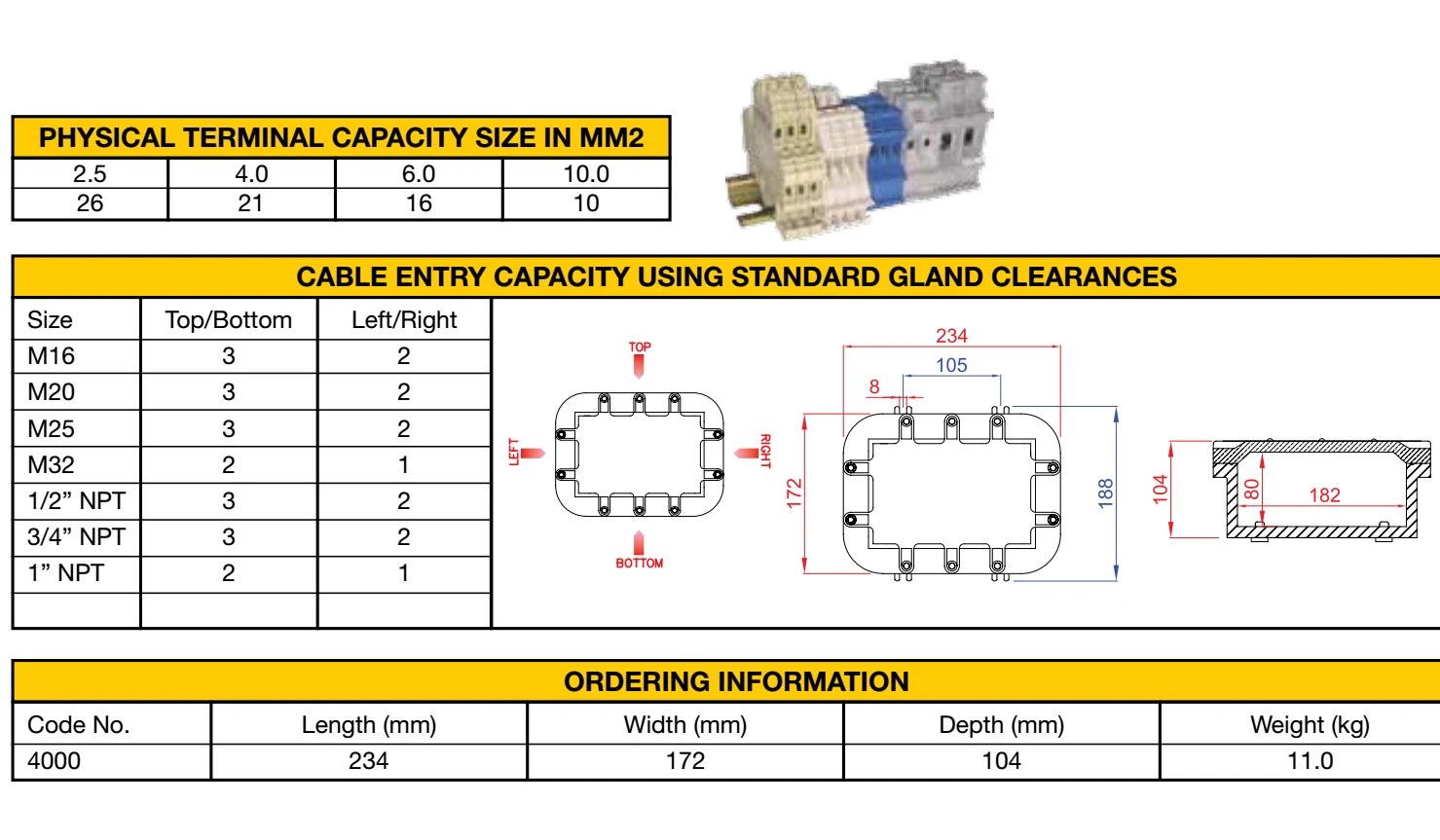

CABLE ENTRIES: Standard entries are 20mm and 25mm ISO metric. 1.5mm pitch. Alternative entries are available
upon request. NPT 1/2" and 3/4". BS conduit 3/4" and 1".
