XN Series-PETREL

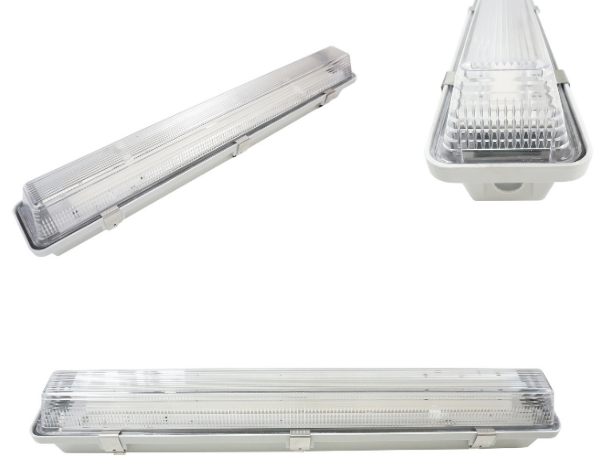

The XN family is available in both high efficiency LED and Traditional Fluorescent light source technology. Featuring a moulded GRP body and polycarbonate diffuser. It is designated as “unrestricted breathing” equipment, meaning no testing is required during routine maintenance inspections. Simple in design, access to all parts is quick and, when needed, lamps may be changed easily by releasing the stainless steel diffuser clips and removing the diffuser.

Three hour duration emergency versions are fitted with integral batteries and charging unit.

• IP65 Rated

• LED & Traditional Technology available

• Suitable for Zone 2/22 and Safe area installation

• Temperature range of -20° to +51°C

• 2’ 4’ & 5’ versions available

• Simple robust and user friendly design

• Up to 5 year extended warranty available

• Unrestricted breathing protection means no annual inspection costs

• Stainless steel clips means reduced corrosion

• Push fit gear tray for simple, fast installation

• 230v 50/60Hz standard. Suitable for central battery operation

• Low maintenance high efficiency LED light source

• Safe area versions available

• Overview:

  A highly competitive zone 2 LED luminaire for use in both internal and external hazardous area applications. Available in a range of sizes from 2-5ft with light output up to 6,637 Lumens.

  Featuring a moulded GRP body and polycarbonate diffuser. It is designated as “unrestricted breathing” equipment, meaning no testing is required during routine maintenance inspections. Simple in design, access to all parts is quick and, when needed, lamps may be changed easily by releasing the stainless steel diffuser clips and removing the diffuser. Three hour emergency versions are fitted with integral batteries and charging unit.

  Key Features:

  • Unrestricted breathing protection means no annual inspection costs

  • Stainless steel clips means reduced corrosion

  • Push fit gear tray for simple, fast installation

  • 230v 50/60Hz standard. Suitable for central battery operation

  • Low maintenance high efficiency LED light source

  Additional Information:

  • Size 2’ 702mm, size 4’ 1312mm, size 5’ 1612mm, Single W, 102mm, Depth 108mm

  • Light Output: Various ranging from 2,655lm-6,637lm

  • 3 wire and earth cable size 4mm2 max. Through wiring versions available.

  Certification:

  Certification Standards: EN 60079-0-15-31

  Certificate No: PET 14ATEXTFXNX
